FELT SOUND is an interactive sound installation, a game, a musical instrument. It is an experience for the various senses. The thirty colorful wooden blocks invite the user to be played with. While you place, stack, and knock down the blocks you can produce countless combinations of sounds. All of that happens on a specifically developed felt mat with several internally embedded sensors. Each sensor generates a different set of sound scales. As you place more blocks on the sensor, more sound will be added in a harmonious way. In addition, the speed of the tone sequences increases by adding blocs. This way, FELT SOUND offers a wide variety of sound outputs. Depending on the user’s intention it is possible to generate precise melodies as well as less controlled sound patterns or a hysterical "sound mess". The felt mat is designed to turn this banal everyday object into an unexpected sound playground for those who participate. FELT SOUND can be both a platform to experience sound, tone sequences and melodies for children and musical education, as well as a tool to compose and generate music. Its highly tactile physical interface allows for an intuitive approach to music without barriers.

A project in collaboration with Songee Hahn



// MAKING OF

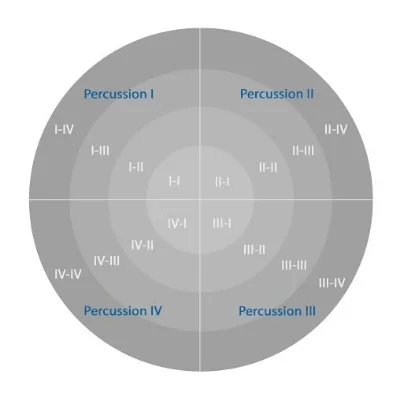

The initial inspiration were classic wooden building blocks just like what children play with. Different sounds appear by stacking the blocs up or just put the down on the ground. The carpet developed to play on is divided into different sections equipped with sensors. First into quarters – every quarter has a different beat. Once a cube gets put or thrown down the beat gets activated through a pressure sensor. Second the carpet is divided into four concentric circles. Depending on which circle a cube gets put, the beat changes. Also depending on how many pieces get put on the ring, the pressure sensor reacts on the weight and changes the sound.







We used the Firmata library which allows us to control an Arduino board from Processing. After we were using the minim library in Processing to make different sounds depending on values of different pressure sensors.



PROTOTYPING // FINDING THE RIGHT PRESSURE SENSOR

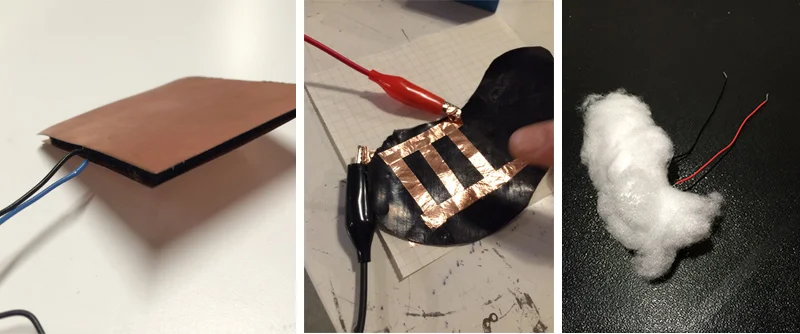

For producing different sounds by sensing the weight of blocks, the use of FSR - pressure sensors - seemed to be the best choice. We tried different kinds of FSR's in order to find the best match for our purposes. The ones off the rack, as well as a row of DIY variations. For the DYI ones the sensing values are too different from one to another, pressure sensors made with copper plates were not sensitive at all, and other ones made with Velostat (pressure sensing fabric) were really hard to make conductive. Another version covered with cotton and sewed up with conductive thread inside were a way too sensitive again.

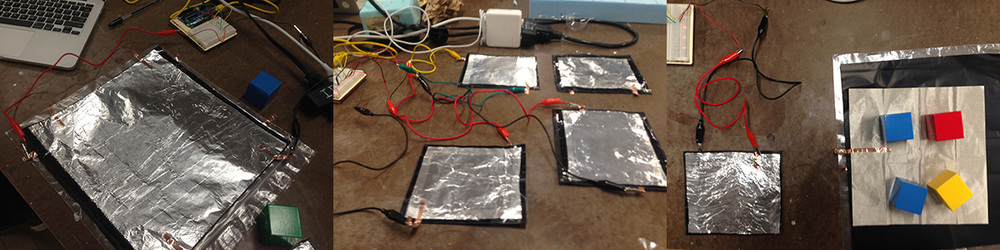

Producing customized FSR's requires a lot of experimentation. In the process we used different materials such as conductive fabric, Velostat, aluminum foil, etc. We fabricated various types of FSRs to achieve stable sensor values and reliability. Each sensor produces four different types of sounds: xylophone, flute, violin, glockenspiel.

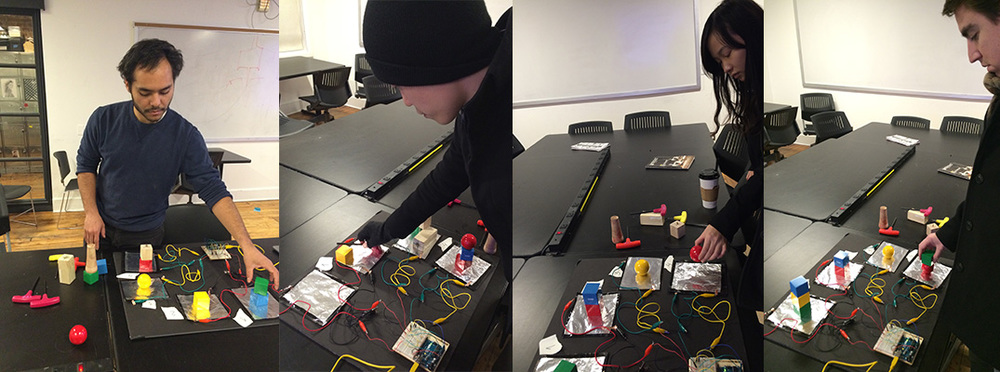

User testing as important part of the development of working user interaction!
